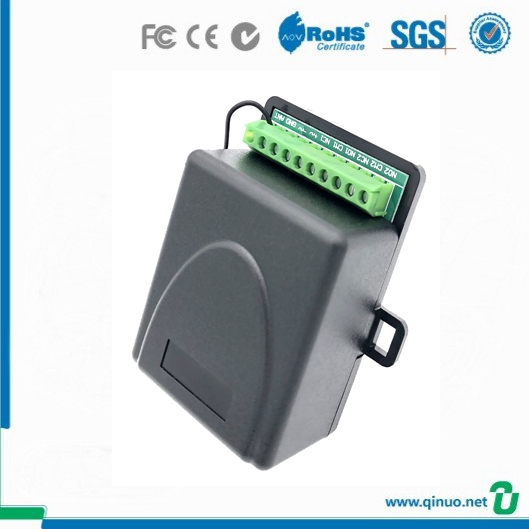

QN-KIT01 Fixed Code Small 2 Channels Unviersal 315mhz Micro Transmitter And Receiver

Feature

1.   micro transmitter and receiver ,2-Channel or 4-Channel independent set-up

2. Can learn up to 100 transmitters(50 pcs 2 button remotes or 100 pcs 1 button remotes)

3. Costomized frequency such as 433.92Mhz, 315Mhz.

4.Can be used in garage door or property gate(save your cost)

5. Power supply : 9V-24V  DC/AC

6. Relay Spec.:  12A 14VDC or 7A 120VAC

7. CE proved

Model NO.:	QN-Kit01
Certification:	SGS, CE, ISO, FCC, RoHS
Receive Frequency:	433.92MHz
Trademark:	Ucontrol
Usage:	Door
Origin:	China
Channel:	4
Frequency:	Customized 315MHz, 433.92MHz, 868MHz
Specification:	CE
HS Code:	85269200

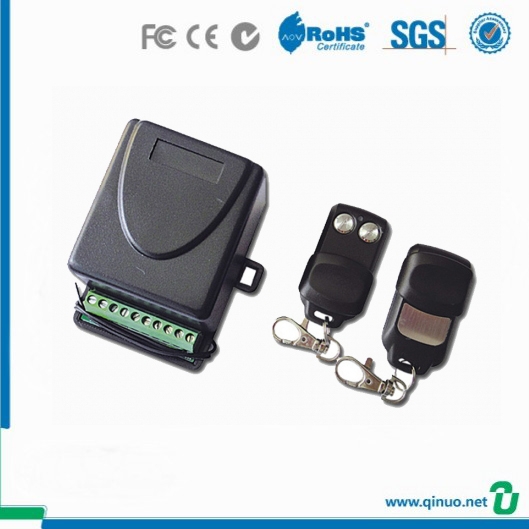

Complete set of Receiver and Transmitter for garage door/automatic door/ Home alarm

The complete set of receiver and remote are used for the garage door sliding door gate.

Biggest load current on relay 12A 14 VDC or 7A 120 VAC

PROGRAMMING:
Press the P1:
-1time to program R1 in monostable mode
-2times to program R2 in monostable mode
-3times to program R2 in bistable mode
-4times to program R2 in bistable mode
Hold down the key of the radio remote control that you would like to acquire until the LED blinks

ERASING:
There are two ways of erasing
1. Erasing a single code:
Press P2 for about two seconds
(release the key) the LED will light up, press the key on the radio remote control that you want to delete.
2. Erasing all codes acquired:
Press P2 until the LED turns on (about 8 seconds)

Package:

Shipping:

Method	Time Needed	Details
DHL, Fedex, UPS	5 workdays normally	Freight Pre-paid or Freight Collect, DHL is most frequently used
EMS, TNT	8 workdays normally	Freight Pre-paid or Freight Collect
Registered Mail	more than 30days	---
By Air		Forwarder Appointed or We help to Find One for You
By Ship		Forwarder Appointed or We help to Find One for You

Payment:

Advanced T/T:30% as deposit,the balance before shipment



Terms	Charges Deducted	Advantage	Advice
T/T	30 - 100usd	Safe within 7work days	Payment >1000 usd
Paypal	Amount * 0.05	Online Timely	Payment < 1000 usd
Western Union	15 - 40 usd (check with your local bank)	-	at will

Car keys,remote controls,wireless transmitter and receivers,garage door openers,sliding door   control boards,receiver modules,car key shells&remote houses,frequency meters,remote copier machines,transponder chip readers etc......

Company

Qinuo Electronics is professional manufacturer who dedicate to providing various RF products for over 5 years,  including car key fobs/ remote controls /duplicators /auto gate control boards /auto gate control box /receiver /kits /receiver modules /detecting device etc......

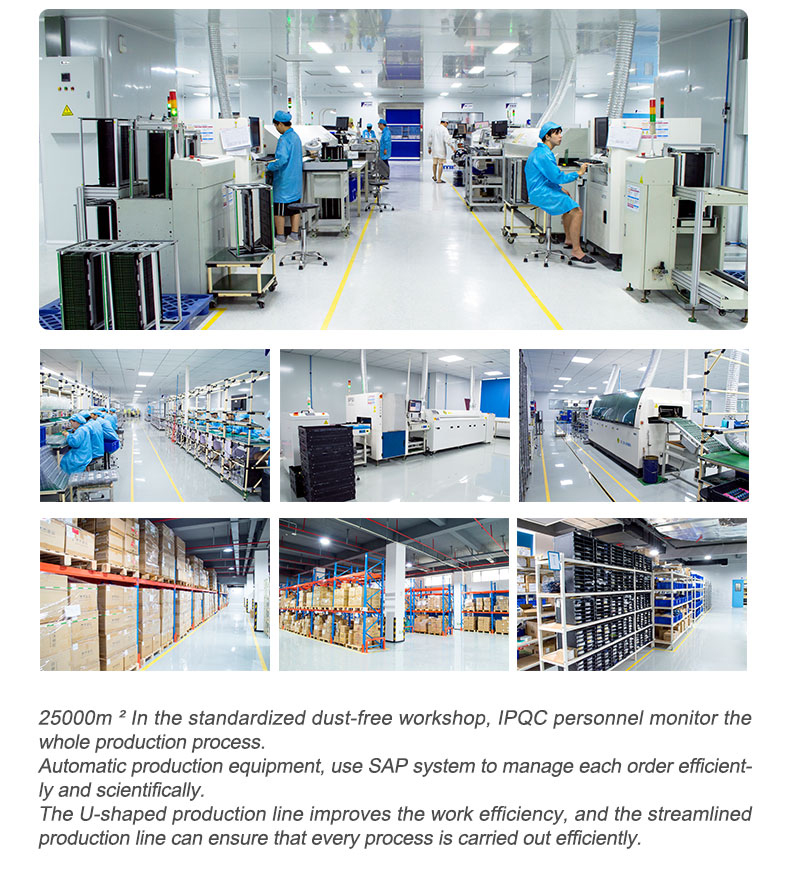

Our New Factory--DUST FREE PLANT:
