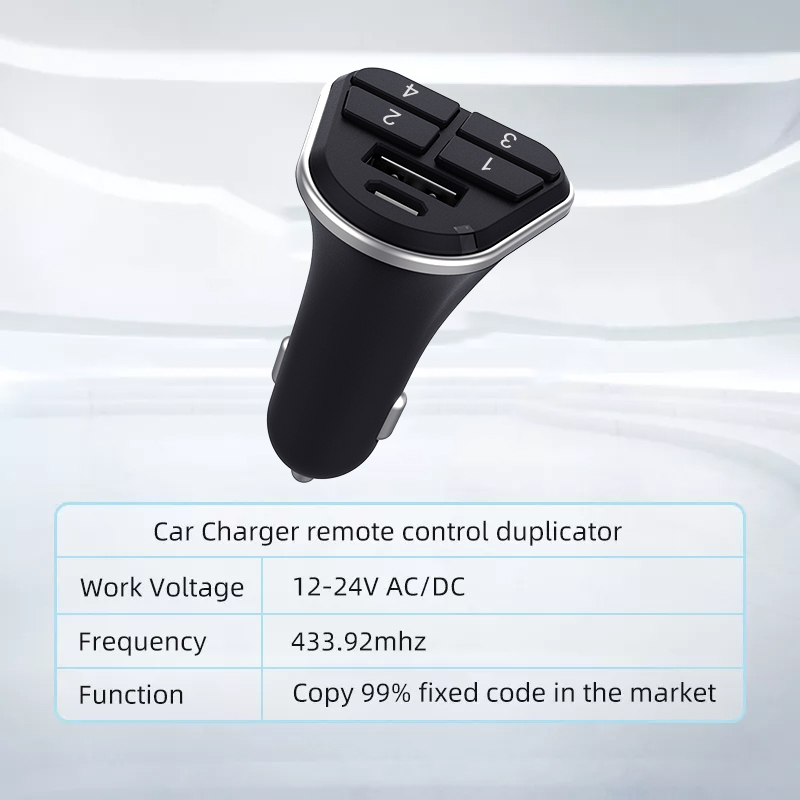

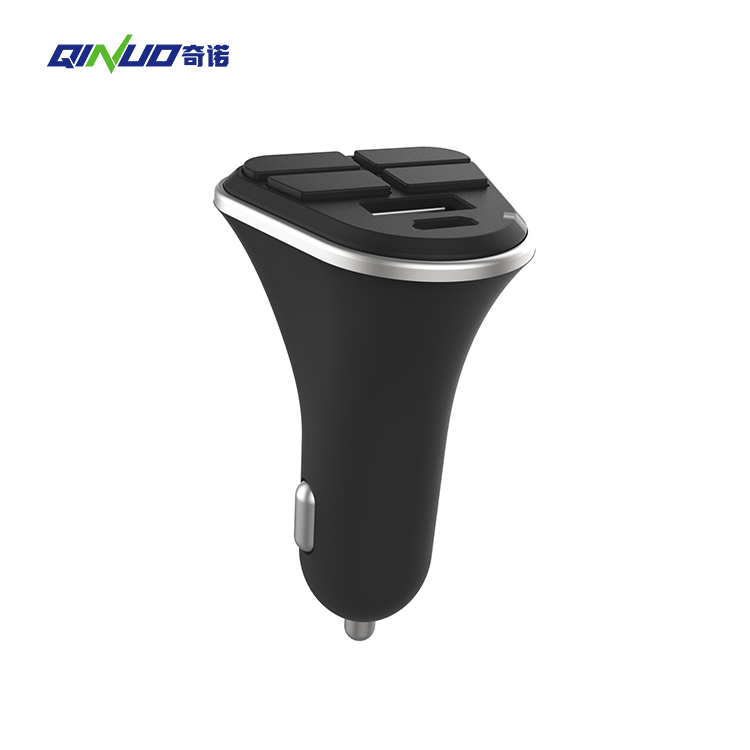

433.0Mhz Car Charger Remote Control Duplicator For Auto Gate Universal

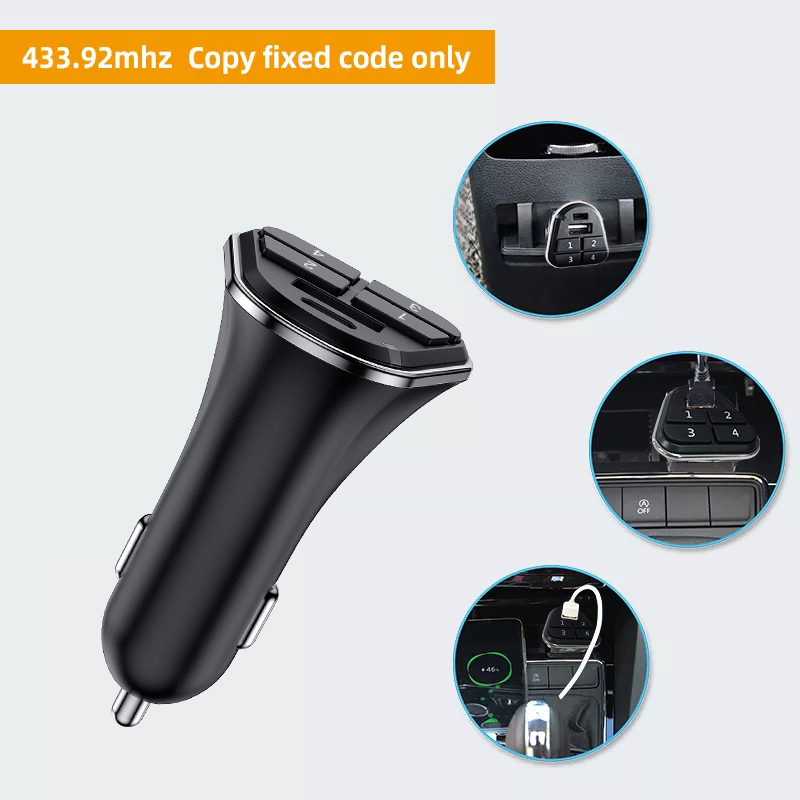

Feature:

1.RF 315/433MHZ, four keys

2. Long working distance. There are 4 buttons for you to set the distance range. When the car enters into the detection range, the door will open automatically. When the car is out of the detection range, the door will close automatically. If the Charger remote can not be detected in 10s, the door will close.

3. Set the delay self-closing. This smart kit can work with garden light and garage door. Automatically open and close the light and door by setting the delay self-closing.

4. One Charger can work with several receivers.

5. Brand Logo: Brand logo print / etching available for customize orders, Pls contact us for details.

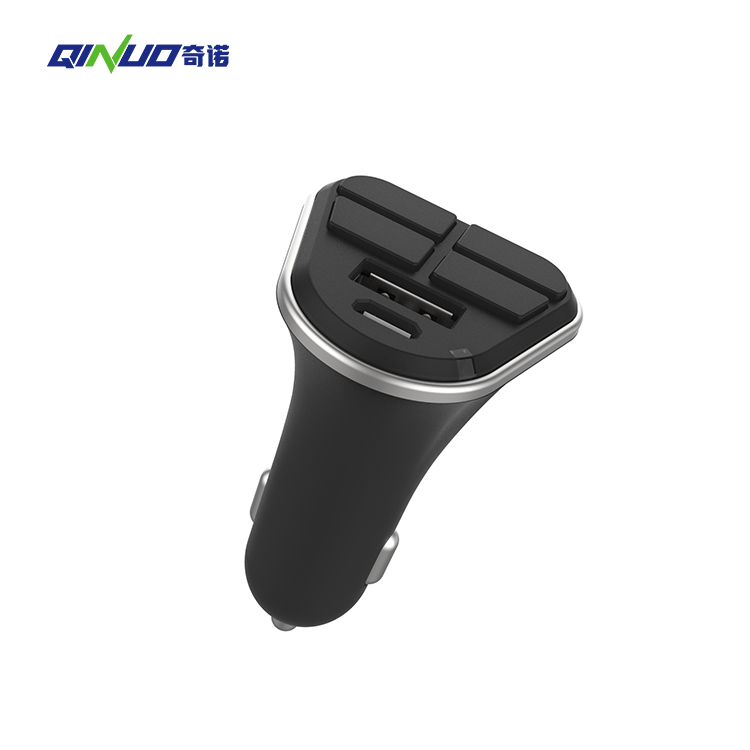

Car Charger Remote

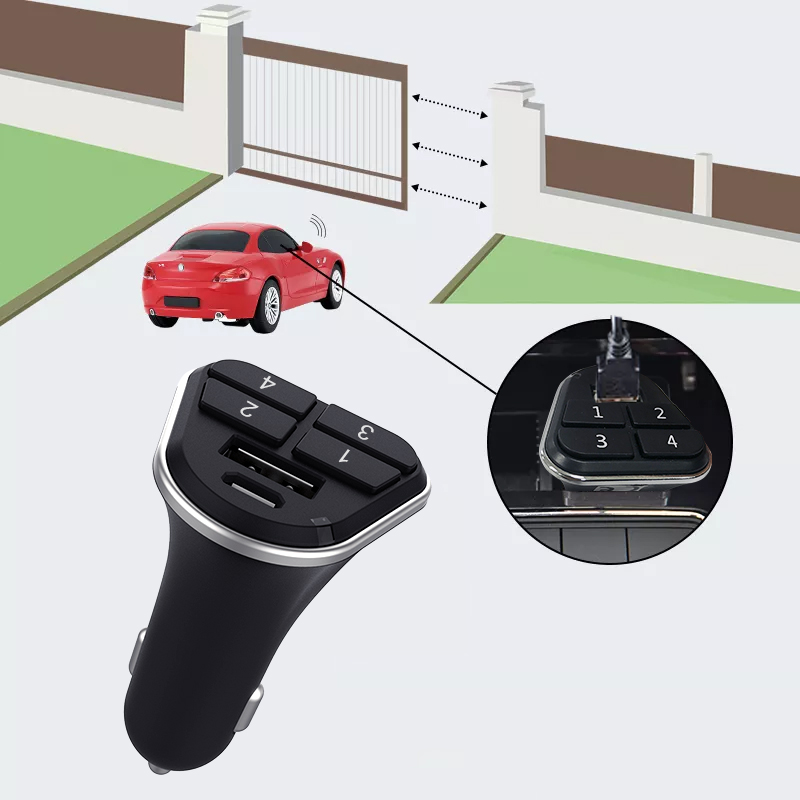

Working distance setting.

1. Press button 3 and button 4 at the same time, the LED flshes ( if no operation in 10s, will exit programming mode），release all buttons

2. Press button 1 one time, then release, LED will turn to green, working range is 15m.

3. Press button 2 one time, then release, LED will turn to blue, working range is 25m.

4. Press button 3 one time, then release, LED will turn to yellow, working range is 35m.

5. Press button 4 one time, then release, LED will turn to red, working range is 45m.

Note: It also can operate by hand. When car enters into detection range,  press button 1, the door will open. Press button 2, the door will close.

delay closing setting:

Delay closing setting:

1. Press button 1 and button 2 at the same time, the LED flshes ( if no operation in 10s, will exit programming mode），release all buttons

2 Press button 1 one time, then release, LED will turn to green, delay closing is 10 seconds.

3 Press button 2 one time, then release, LED will turn to blue, delay closing is 1minute.

4 Press button 3 one time, then release, LED will turn to yellow, delay closing is 5 minutes.

5 Press button 4 one time, then release, LED will turn to red, delay closing is 10 minutes.

The working range is based on open area. Please find a suitable working range to use according to your environment.

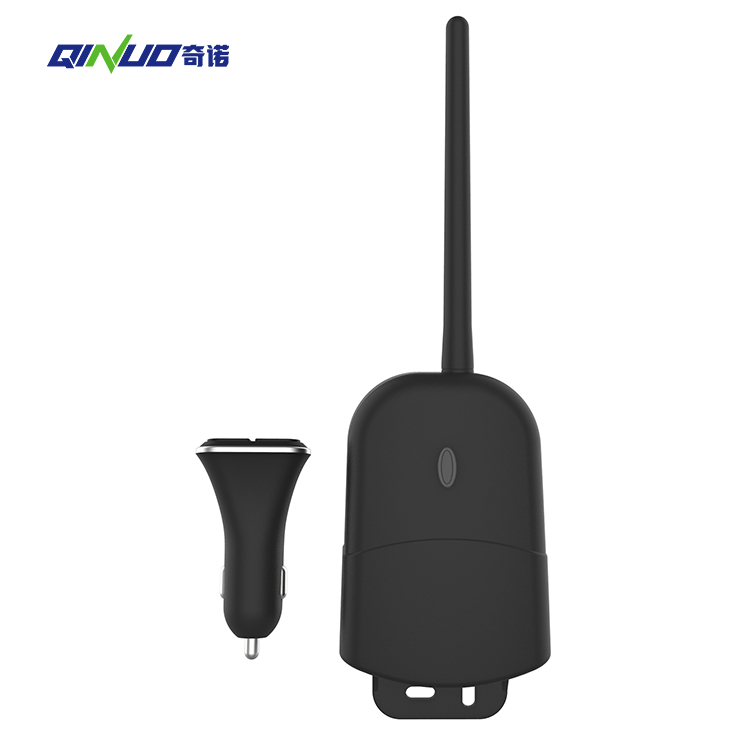

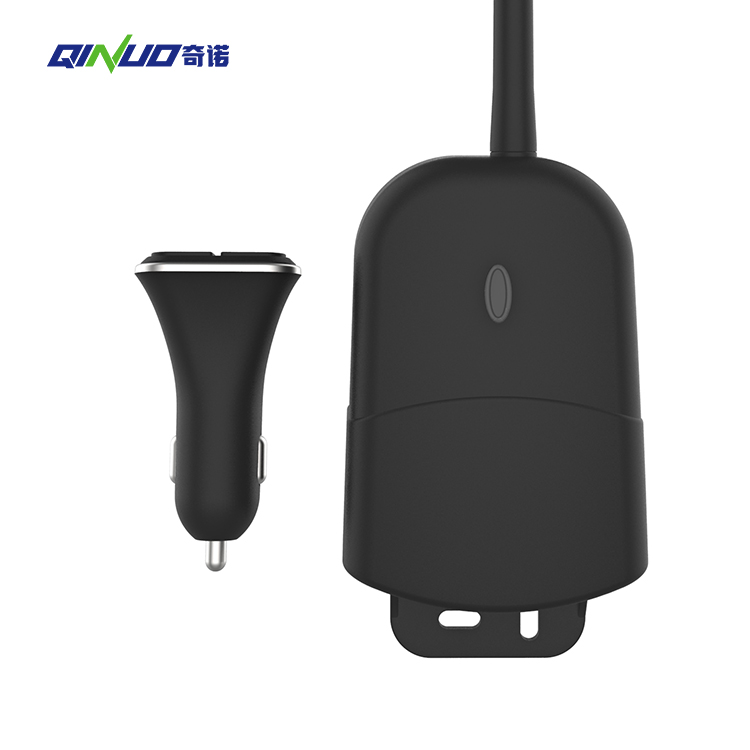

Receiver

When the receiver detects the signal of charger remote, LED keeps lighting, the door will  open. The door will close if can not find the signal of charger remote, and the LED changes into blink.

There are two modes: mono-stable mode and bistable mode. Mono-stable mode is for garage door, Bistable mode is for garden light

1、 Operation:

a. Press 1 time“Learn”button, will ring for 1 time, it is mono-stable mode.

b. Press 2 times ”Learn” button, will ring 2 times, it is bistable mode.

c. Press 3 times ”Learn”button, will ring for 1 time, it is mono-stable mode.

d. Press 4 times ”Learn” button, will ring 2 times, it is bistable mode.

2、 Mono-stable mode

a. Detect the signal of charger remote, the door will open, the LED of receiver keeps lighting.

b. If can not detect the signal of charger remote, will delay time to close the door( the delay closing according to your setting of charger), the LED of receiver keeps flashing

3、 Bistable mode

a. Detect the signal of charger remote, the door will open, the LED of receiver keeps lighting（The COM and OPEN should be ON）.

b. If can not detect the signal of charger remote, will delay time to close the door( the delay closing according to your setting of charger), the LED of receiver keeps flashing （The COM and OPEN should be ON）.

The operation between charger with receiver

1、 Preset the button 4, the LED of charger remote is red.

2、 Keep pressing the “learn” button of receiver for 2s, the LED of receiver keeps slow flashing.

3、 Take charger remote close to the receiver until the buzzer rings 3 times, match successfully.

Note：

1、 After finished the match pattern with receiver, will exit after 120s or press ”Learn” button 1 time to exit.

2、 Please take charger remote close to close to receiverto program.

Deleting:

When the charger remote is power off, press the “Learn” button 1 time, the LED will flash, press the Set” button for 8s, the buzzer rings 2 times

wiring diagram

When the output is “Close”, the COM connects to CLOSE.

When the output is “Open”, the COM connects to OPEN .
